▶ 현재위치 : HOME >MOTOR > DC CORELESS MOTOR

PRODUCT Model

Model	Combination Gearbox		Size
Model	Spur	Planetary	Size
SCL07-17	SPG07	-	Φ7 x 17.5 mm
SCL10-12	-	SSG10	Φ10 x 13 mm
SCL10-18	SPG10	SSG10	Φ10 x 18.1 mm
SCL10-30	SPG10	SSG10	Φ10 x 30 mm
SCL12-20	SPG12	SSG12	Φ12.5 x 21 mm
SCL12-22	SPG12	SSG12	Φ12.5 x 23 mm
SCL12-30	SPG12	SSG12	Φ12.5 x 32 mm
SCL16-15	-	SSG15	Φ16 x 17.5 mm
SCL16-25	SPG16	SSG15	Φ16 x 25 mm
SCL16-29	SPG16	SSG15	Φ16 x 29 mm
SCL16-30	SPG16	SSG15	Φ16 x 31.4 mm
SCL16-34	SPG16	SSG15	Φ16 x 34 mm
SCL17-30	SPG16	SSG15	Φ17 x 31.4 mm
SCL18-25	SPG16	SSG18	Φ18 x 25.5 mm
SCL18-33	SPG16	SSG18	Φ18 x 35 mm

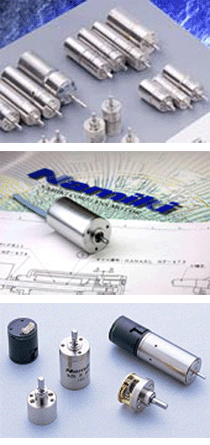

▶ 일본 NAMIKI사의 16파이의 CORELESS MOTOR로서 GEARBOX, ENCODER이
장착가능하며 고객사의 요구에 맞게 특주화(Customizing)도 가능한 제품군입니다.

[CGE16-2501]
16phi x 25mm, 3.6V, 9,574rpm, 2.2Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-2502]
16phi x 25mm, 4.5V, 9,789rpm, 2.2Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-2504]
16phi x 25mm, 6V, 9,901rpm, 2.2Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-2518]
16phi x 25mm, 12V, 9,718rpm, 2.0Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-2501]
16phi x 25mm, 18V, 9,219rpm, 1.6Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-2591]
16phi x 25mm, 24V, 9,511rpm, 1.5Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-2901]
16phi x 29mm, 3.6V, 7,419rpm, 2.5Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-2902]
16phi x 29mm, 4.8V, 7,416rpm, 2.4Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-2905]
16phi x 29mm, 7.2V, 7,851rpm, 2.5Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-2915]
16phi x 29mm, 12V, 7,940rpm, 2.4Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-2936]
16phi x 29mm, 18V, 7,931rpm, 2.2Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-2962]
16phi x 29mm, 24V, 8,378rpm, 2.3Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-3502]
16phi x 35mm, 4.8V, 5,951rpm, 3.0Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-3503]
16phi x 35mm, 6V, 6,008rpm, 3.0Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-3506]
16phi x 35mm, 9V, 6,332rpm, 3.1Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-3512]
16phi x 35mm, 12V, 6,505rpm, 3.0Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-3529]
16phi x 35mm, 18V, 6,327rpm, 2.8Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-3547]
16phi x 35mm, 24V, 6,714rpm, 3.0Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-4002]
16phi x 40mm, 6V, 5,702rpm, 4.0Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-4003]
16phi x 40mm, 7.2V, 5,574rpm, 3.7Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-4006]
16phi x 40mm, 9V, 5,532rpm, 3.5Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-4010]
16phi x 40mm, 12V, 5,698rpm, 3.5Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-4022]
16phi x 40mm, 18V, 5,786rpm, 3.6Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGE16-4057]
16phi x 40mm, 24V, 5,058rpm, 2.5Watt
Spur Gearbox Planetary Gearbox
Encoder

▶ QUICK RESPONSE TYPE(샘플 조달이 빠른 모델)

[CGR16-2902]
16phi x 29mm, 3.6V, 7,385rpm, 1.7Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGR16-2903]
16phi x 29mm, 4.8V, 8,065rpm, 2.0Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGR16-2904]
16phi x 29mm, 6V, 8,211rpm, 2.0Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGR16-2907]
16phi x 29mm, 7.2V, 7,810rpm, 1.7Watt
Spur Gearbox Planetary Gearbox
Encoder

[CGR16-2910]
16phi x 29mm, 9V, 8,743rpm, 2.0Watt
Spur Gearbox Planetary Gearbox
Encoder
