Constant Horsepower of High Torque at Low Speed and Medium Performance between Constant HP and Constant Torque
|
|
|
-.Strong Against Overload, Robust Mechanism
-.Infinitely Adjustable Output Speed
-.Unrivalled Starting Torque-Constant Horsepower
-.Compact and Light
-.Less Lubricating Oil Change
-.High Efficiency, Long Life and Reliability
-.Self-Lock Function
-.Wide Range of Model Series
|
|
|
|
COMPACT SPEED REDUCER FOR SERVO MOTORS
|
|
|
|
| Reduced size and improved capabilities of speed reducers |
|
|
|
Overall Length 99.5mm,Net Weight 550굟?걁for 100W걂
Light Weight & Compact Design
Low Backlash & Precision Backlash Series
Reduction Ratio: 1/3?1/81
Servo Motor Capacities: 50W?5kW
Applicable to Various Servo Motors
Compact Design Applicable to Small, Light Weight Servo MotorsUtilizing High Performance Servo Motor
|
|
VR SERIES
|
|
Precision Backlash Type/Low Backlash Type/Standard Type
Right Angle Type
|
|

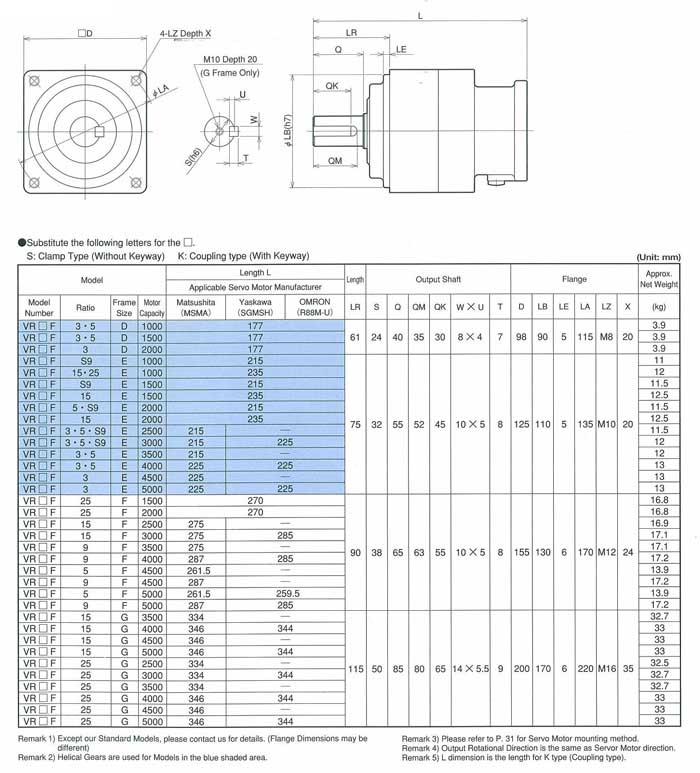

Performance Table
(Input Speed 3000 rpm)
|

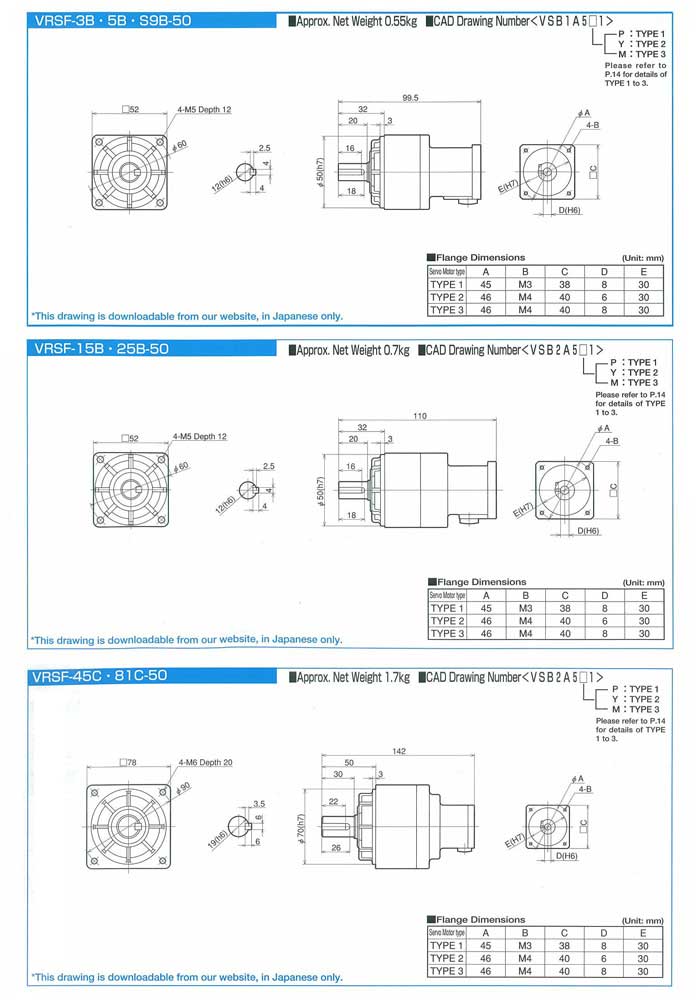

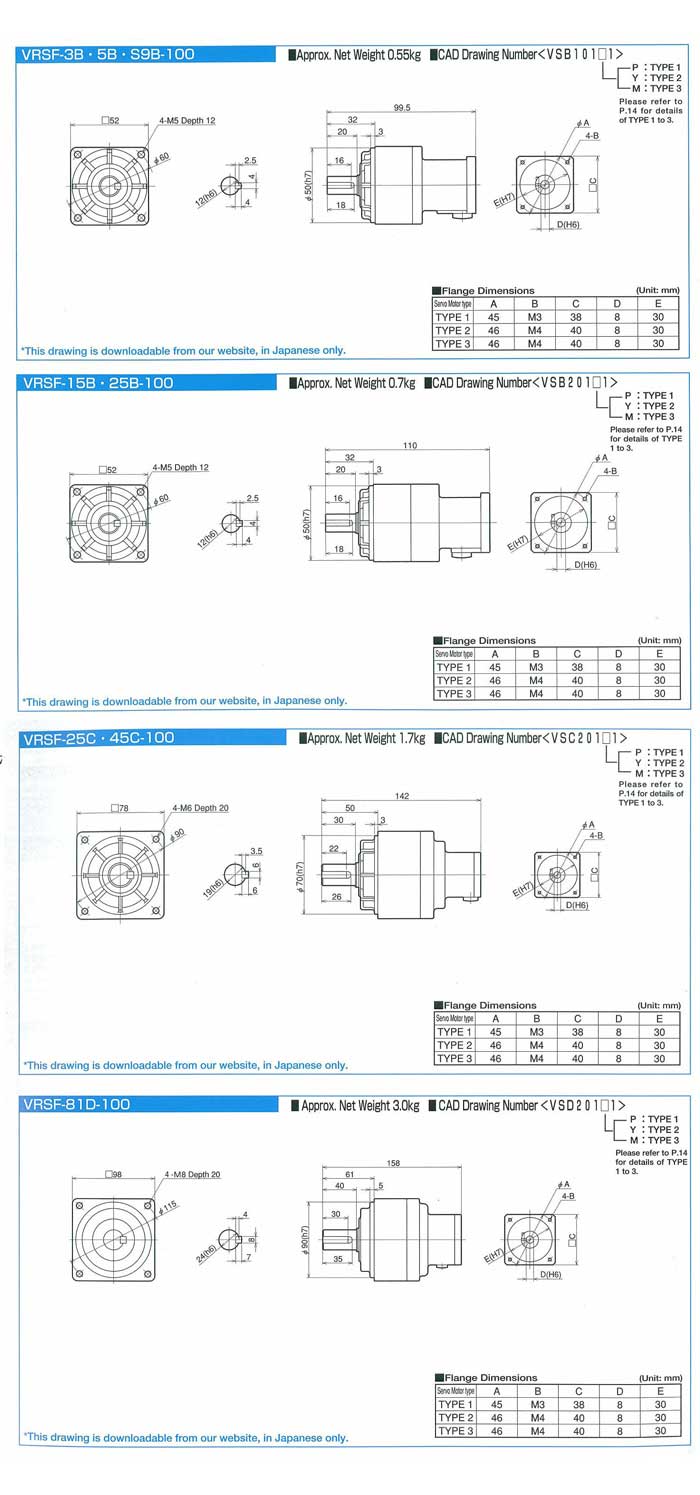

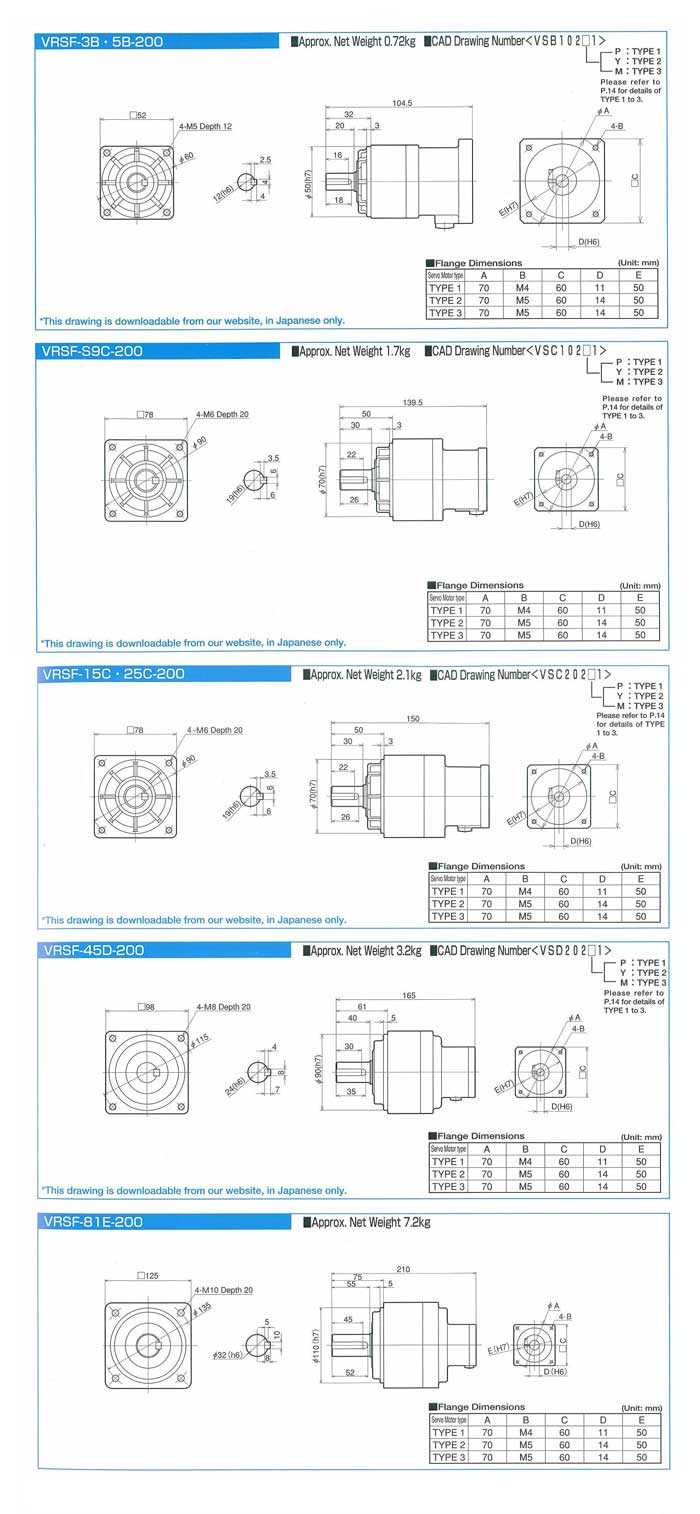

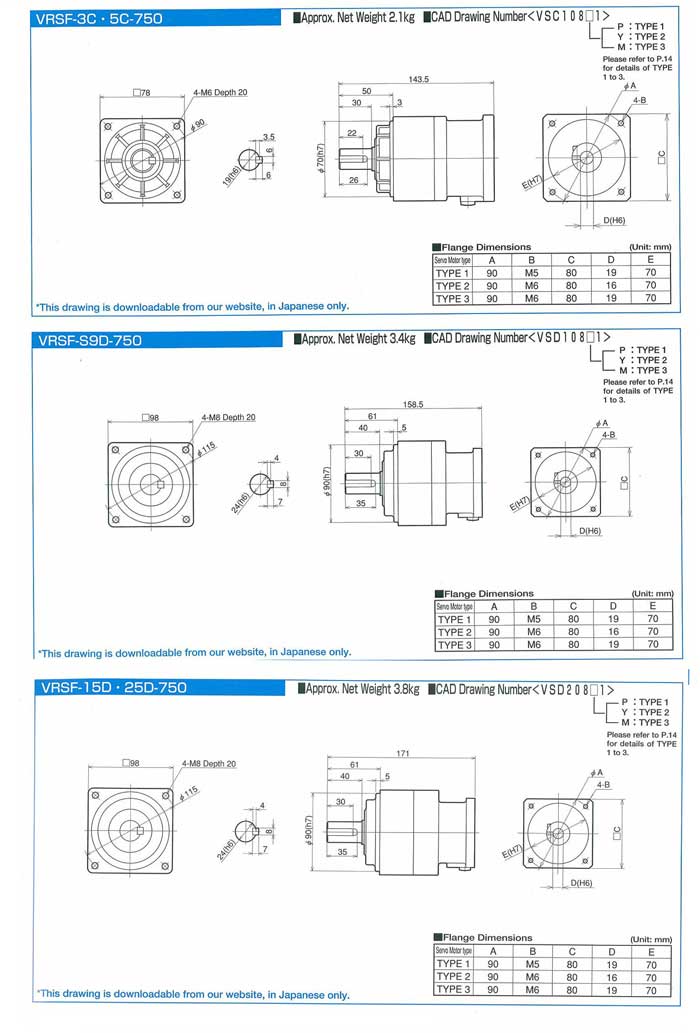

Dimensions
(VR series)
|
|
|
|
|
Type, Model Number
|
Reduction Ratio,Frame
Size,Radial Load
|
|
|
|
|
|
|
The Following Manufacturer's Servo Motors are applicable.
|
|
Matsushita Electric Industrial Co., Ltd.
|
|
Yaskawa Electric Mfg. Co., Ltd.
|
|
Mitsubishi Electric Corporation
|
|
OMRON Corporation
|
|
Tamagawa Seiki Co.,Ltd.
|
|
Nikki Denso Co.,Ltd.
|
|
Shinko Electric Industries Co., Ltd.
|
|
Toei Electric Co., Ltd.
|
|
Sanyo Electric Co., Ltd.
|
|
Fuji Electric Co., Ltd.
|
|
Fanuc Ltd.
|
|
Miki Pulley Co., Ltd
|
|
Hitachi Sanki System Co., Ltd.
|
|
Keyence Corporation
|
|
Sanmei Co,.Inc.
|
|
|
|
|
|
|
|
For Space Saving Mounting
|
|

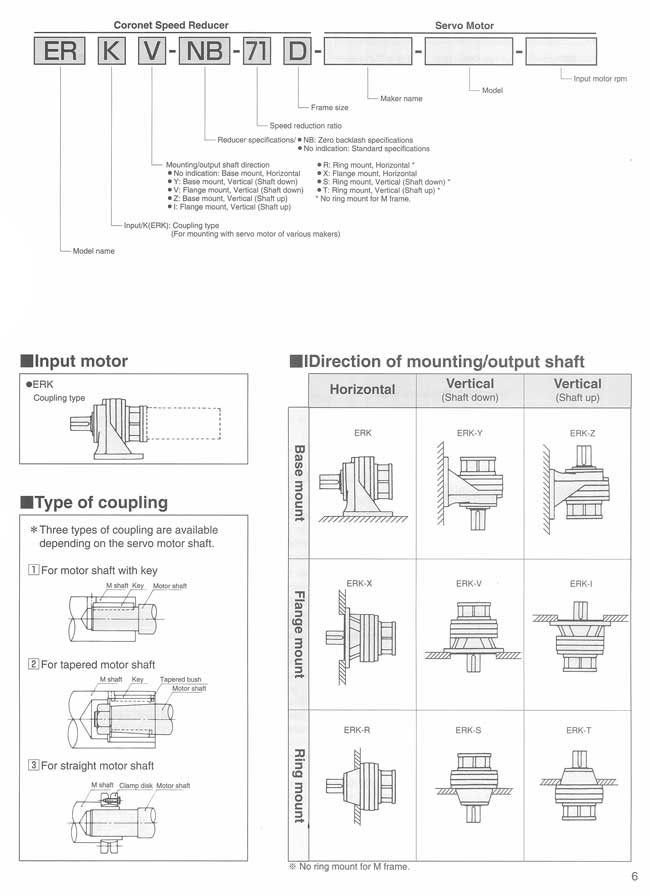

High Efficiency, High Performance & Compact ER series
|
|
|
|
-.The Unique Circulute Teeth
-.High Precision Machining
-.Energy Saving by High Efficiency
|
|
|
|
|
|
|
|
For Precise Positioning and Accurate Controlling
|
|
Low backlash 0.1 degree or less Small internal moment of inertia gives rapid responsibility of servo motor.
High torsional stiffness
Can be installed in various manufacturer's servo motor.
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
