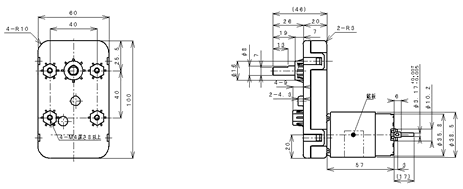

▶ 현재위치 : HOME > MOTOR > DC GEARED MOTOR> SAYAMA MOTOR> RHP-100A 　ＲＨＰ－１００Ａ ◆Examples of Applications：Coin Hopper 　Geared Motor Model>> ＲＨＰ－１００Ａ（２４Ｖ） Reduction ratio 1/i Rated torque Rated speed min-1 Rated current mA No load speed min-1 No load current mA CW,CCW L mm mN?m kg?cm 1/50.05 637 6.5 113 ?830 126 ?315 CCW - Notes 1. The value for a geared motor's current is converted from the torque, and is a reference value. 2. The above specifications are an example. Please consult with us about your desired specifications.
