| ◆Examples of Applications：Optical Equipment, Card Conveyors,
Fiber Optic Fusion Splicers |

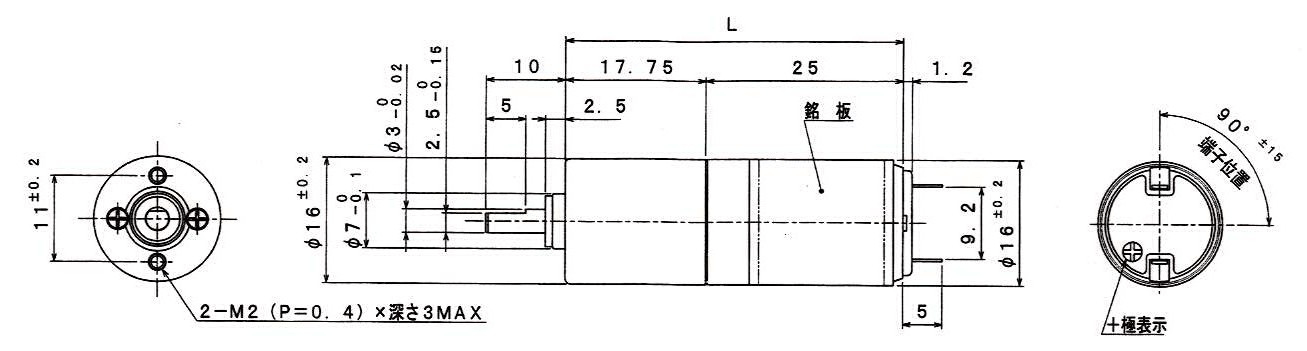

◆GEARED MOTOR
TORQUE/SPEED/CURRENT
| Geared Motor Model>> ＳＣＲ１６Ｇ－２５０６Ａ－０６ （１／ｉ） |
Reduction
ratio
1/i |
Rated
torque |
Rated
speed
min-1 |
Rated
current
mA |
No
load
speed
min-1 |
No
load
current
mA |
CW,CCW |
L
mm
|
| mN?m |
kg?cm |
| 1/10 |
4.41 |
0.045 |
573 |
?90 |
651 |
?25 |
CCW |
42.75 |
| 1/19 |
7.85 |
0.080 |
325 |
↑ |
369 |
↑ |
↑ |
↑ |
| 1/31 |
9.81 |
0.10 |
205 |
?80 |
229 |
↑ |
CW |
↑ |
| 1/40 |
14.7 |
0.15 |
156 |
?90 |
117 |
↑ |
↑ |
↑ |
| 1/62 |
19.6 |
0.20 |
102 |
?80 |
114 |
↑ |
↑ |
↑ |
| 1/97 |
29.4 |
0.30 |
65 |
?85 |
73 |
↑ |
CCW |
↑ |
| 1/150 |
49.0 |
0.50 |
42 |
?90 |
47 |
↑ |
↑ |
↑ |
| 1/206 |
58.8 |
0.60 |
30 |
?85 |
34 |
↑ |
CW |
↑ |
| 1/258 |
↑ |
↑ |
25 |
?75 |
27 |
↑ |
↑ |
↑ |
| 1/375 |
↑ |
↑ |
18 |
?55 |
19 |
↑ |
↑ |
↑ |
| 1/534 |
↑ |
↑ |
13 |
?45 |
13 |
↑ |
↑ |
↑ |
| 1/781 |
↑ |
↑ |
8.8 |
?40 |
9.1 |
↑ |
CCW |
↑ |
| 1/992 |
↑ |
↑ |
7.0 |
?35 |
7.2 |
↑ |
↑ |
↑ |
| 1/1413 |
↑ |
↑ |
4.9 |
?30 |
5.0 |
↑ |
↑ |
↑ |
| |
：Standard Reduction Ratio |
| *When ordering, please designate a reduction
ratio. |
◆MOTOR INSTALLATION
|
Motor Model>> ＳＣＲ１６－２５０６Ａ－０６Ａ |
Motor
name
|
Rated
volt
V |
Rated
torque
|
Rated
speed
min-1 |
Rated
current
mA |
No
load
speed
min-1 |
No
load
current
mA |
CW,CCW |
Rated
output
(W) |
| mN?m |
g?cm |
| SCR16-2506A-06A |
6 |
0.589 |
6 |
6200 |
?90 |
7100 |
?20 |
CW |
0.38 |
◆GEARBOXES SPECIFICATIONS
| Gearhead Model>> ＲＡ－１６Ｒ （１／ｉ） |
Reduction
ratio
1/i |
Rated
torque
|
Step |
Efficiency
% |
CW,CCW |
Radial
play
of shaft
mm |
Thrust
play
of shaft
mm |
L
mm
|
Catarog
Data |
Calculated
Data |
mN?m |
kg?cm |
| 1/10 |
1/10.91 |
12.8 |
0.13 |
3 |
73 |
CCW |
?0.07 |
?0.25 |
17.75 |
| 1/19 |
1/19.22 |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
| 1/31 |
1/31.06 |
29.4 |
0.30 |
4 |
66 |
CW |
↑ |
↑ |
↑ |
| 1/40 |
1/40.14 |
34.3 |
0.35 |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
| 1/54 |
1/54.58 |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
| 1/62 |
1/62.37 |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
| 1/97 |
1/97.37 |
49.1 |
0.50 |
5 |
59 |
CCW |
↑ |
↑ |
↑ |
| 1/150 |
1/150.11 |
58.9 |
0.60 |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
| 1/206 |
1/206.45 |
↑ |
↑ |
6 |
53 |
CW |
↑ |
↑ |
↑ |
| 1/258 |
1/258.78 |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
| 1/375 |
1/375.49 |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
| 1/534 |
1/534.96 |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
| 1/781 |
1/781.62 |
↑ |
↑ |
7 |
48 |
CCW |
↑ |
↑ |
↑ |
| 1/992 |
1/992.36 |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
| 1/1237 |
1/1237.09 |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
| 1/1413 |
1/1413.82 |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
↑ |
| |
：Standard Reduction Ratio |
| Notes |
1. The value for a geared motor's current is converted from
the torque, and is a reference value. |
|
2. The above specifications are an example. Please consult
with us about your desired specifications. |
|
3. The turning directions stated in the standard speed reducer
specifications are: CW: same as that of a motor, and CCW: opposite of that of a
motor.
|
|
|
