NPMC5023-2104 (Motion Control Board)
| Bus Type |
PC/104 |
| No. of Axes |
2 |
| Core LSI/Reference Clock |
PCL5023 / 19.6608MHz |
| Type of Output Pulse |
Pulse/Direction, CW/CCW |
| Linear Interpolation |
Yes |
| Max. Output Frequency |
4.9Mpps |
| Acceleration/Deceleration |
Linear, S-curve |
| Pulse Output Options |
n/a |
| Motion Profiles |
Triangular, Trapezoidal, Continuous |
| Speed Change |
On the fly |
| Encoder Feedback |
28-bit up/down counter |
| Opto-Isolated Inputs |
±Limits, Home, Alarm |
| Inerrupt Capability |
Error, Move, & Finish |
| Digital I/O Channels |
Output for enable (per axis) |
| Bus Type |
+5Vdc ±5%, 503mA max |
| External |
+5Vdc ±5%, 500mA max (resettable fuse available) |
| Temperature |
0 to +50°C |
| Humidity |
80% R.H. max (no dew condensing) |
Outline Drawing
Sheet Thickness: 1.58
Units: mm

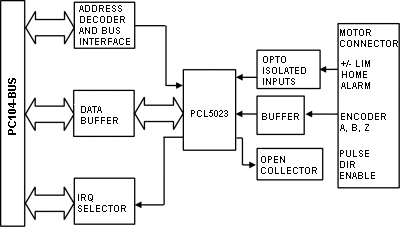

Internal Block Diagram
System Diagram
|
|
