NPMC6045A-4104  (Motion Control Board)

Specifications
Bus Type PC/104
No. of Axes 4
Core LSI/Reference Clock PCL6045A / 19.6608MHz
Type of Output Pulse Pulse/Direction, CW/CCW
Linear Interpolation Yes (any 2 to 4 axes)
Circular Interpolation Yes (any 2 axes)
Continuous Interpolation Yes
Max. Output Frequency 6.5Mpps
Acceleration/Deceleration Linear, S-curve
Motion Profiles Triangular, Trapezoidal, Continuous
Speed Change On the fly
Position Change On the fly
Encoder Feedback 28-bit up/down counter
Opto-Isolated Inputs ±Limits, Home, SD, INP, EMG
Inerrupt Capability Error, Move, & Finish
Digital I/O Channels 4 input / 8 output
Power Requirements
Bus Type +5Vdc ±5%, 400mA max (no load)
External +24Vdc ±5%, 250mA max (from CN1, CN2)
Operating Environmental Condition
Temperature 0 to +40°C
Humidity 80% R.H. max (no dew condensing)

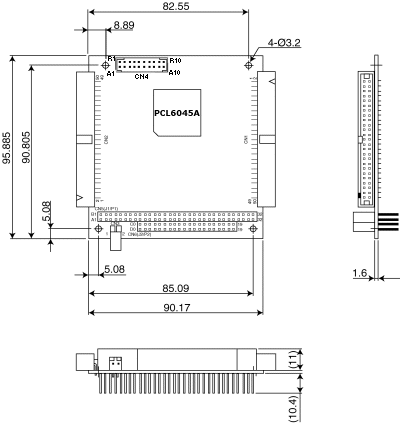

Outline Drawing

Units: mm

Internal Block Diagram
